Chimney extension 187-360 mm BlackDWZ1IB6N1 • 17006769
DWZ1IB6N1 • 17006769
1 / 6
Chimney extension 187-360 mm BlackDWZ1IB6N1 • 17006769
DWZ1IB6N1 • 17006769
$219.00
Recommended retail price
Where to buy
Show all online dealersBosch has a commercial relationship with this retailer and may receive a commission for products purchased through their website. You accept the privacy policy when you click "Visit Retailer Shop" or the retailer's logo.
Chimney extension 187-360 mm BlackDWZ1IB6N1 • 17006769
DWZ1IB6N1 • 17006769
$219.00
Recommended retail price
Where to buy
Show all online dealersBosch has a commercial relationship with this retailer and may receive a commission for products purchased through their website. You accept the privacy policy when you click "Visit Retailer Shop" or the retailer's logo.
Check appliance compatibility
How to find your E-Number
The model number (E-number) is located on the type plate of your device.
Technical Overview
Product group for which the accessory is available
Rangehood
Special Features

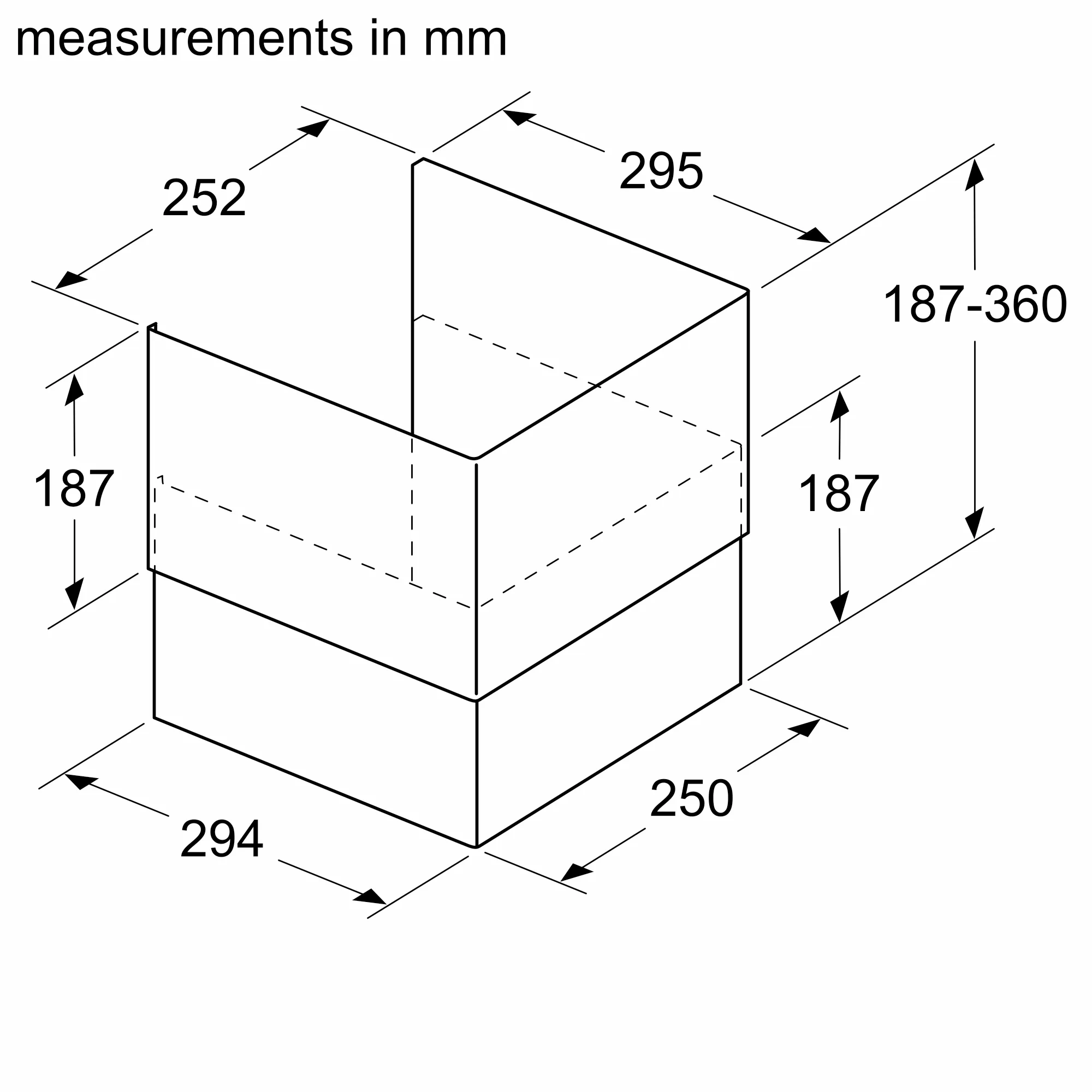

Chimney extension 187-360 mm for integrated design hood.
Two-piece chimney set for an individual height adjustment in a wall cupboard.

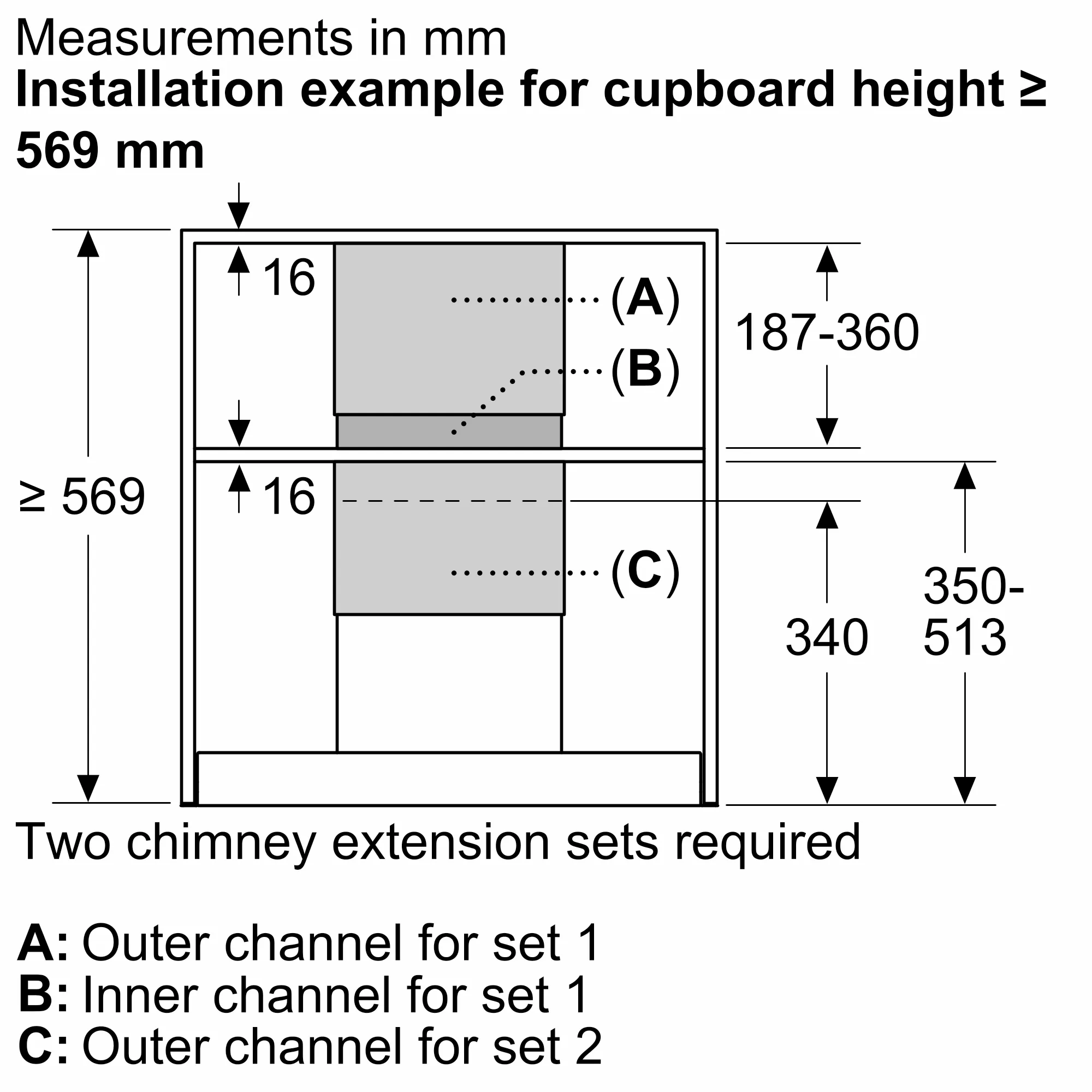

Installation of the appliance with more than one chimney extension set possible.
Suitable for ducted and re-circulated extraction

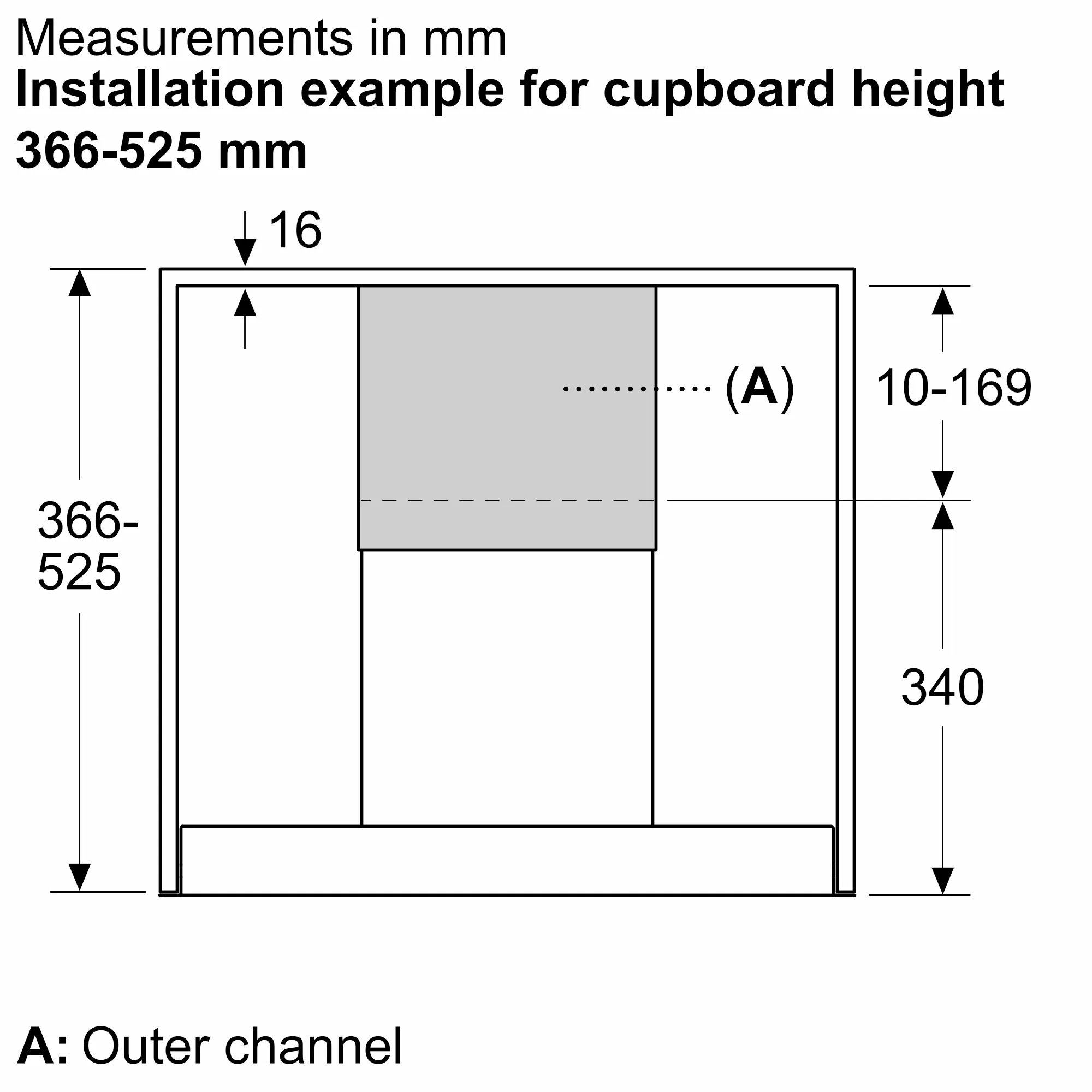

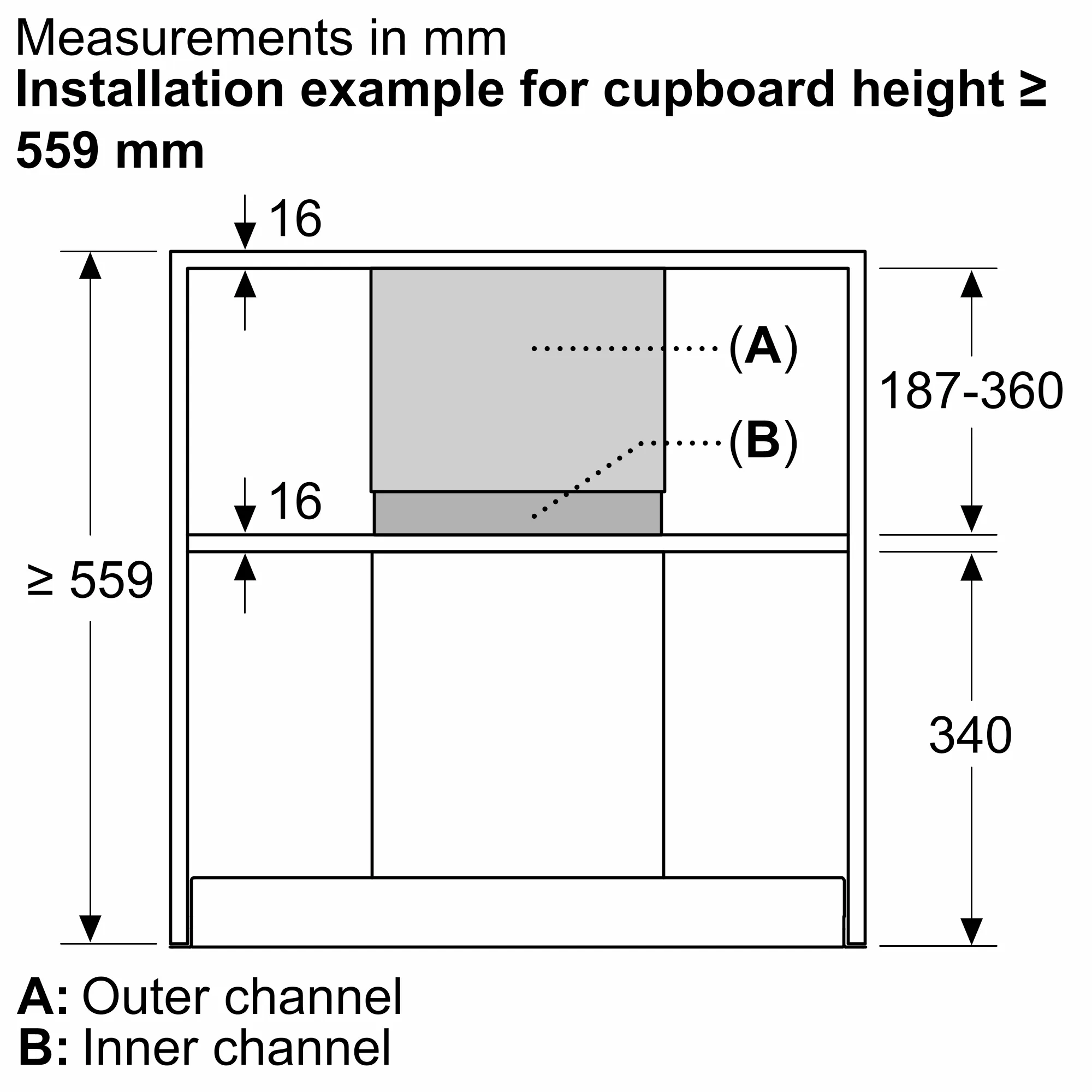

Please reference the built-in dimensions provided in the installation drawings
Specifications
Chimney extension 187-360 mm for integrated design hood.
Two-piece chimney set for an individual height adjustment in a wall cupboard.
Installation of the appliance with more than one chimney extension set possible.
Suitable for ducted and re-circulated extraction
Please reference the built-in dimensions provided in the installation drawings
