Serie | 4 60 cm Slideout Rangehood

DFS067A50A

$799.00

Recommended retail price


The slideout rangehood practically disappears into your upper cabinet, giving you a sleek kitchen finish.

Highlights

Thanks to low noise levels you hear: nothing.

You can easily chat with your guests while cooking with our recirculation rangehoods. Generally, all you hear is a swishing sound is generated by the noise of the motor itself and the air flow, depending on the level of counterpressure. On ducted models, 50% of the noise is ducted to the outside. Bosch rangehoods with the CleanAir module generate up to 3 dB(A) less noise than conventional recirculation systems while offering the same performance.

The optimum air volume for kitchens of all sizes.

No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be circulated 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the rangehood must be appropriate to the room volume.

Reviews

Technical Specifications

Power and Mode of Operation
  • Maximum extraction 740 m3/h
  • 3 power settings plus intensive setting
  • Ducted and recirculated-air operation
  • Accessories required for recirculation mode: CleanAir Module
Design & Innovation
  • Appliance colour: Steel body, metallic finish
  • Stainless steel fascia panel/pelmet included
  • Electronic controls with low-lift push buttons
  • 2 x 3 Watt LED Lights
Convenience
  • Intensive operation automatic revert - 6min
  • Automatic run on for Automatic run on - 10 min
  • Noise min./max. Normal Level: 43/55 dB
    Noise max. Intensive setting: 68 dB
  • Easy installation system
Cleaning
  • Dishwasher safe metal grease filters
  • Safety and Quality
  • EcoSilence BLDC brushless motor
2 year warranty
  • Dimensions (HxWxD)
  • Appliance dimensions (HxWxD): 426 x 598 x 290 mm
  • Built-in dimensions (HxWxD): 385 x 524 x 290 mm
Technical Information
  • Noise level according to EN 60704-3 und EN 60704-2-13 exhaust air:
    Max. normal use: 55 dB(A) re 1 pW (41 dB(A) re 20 µPa sound pressure)
    Intensive: 68 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
  • Power rating: 146 W
  • Average Energy Consumption: 35.3 kWh/year
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Install into a 60cm wide wall cupboard
More Info
General
Width 60 cm
Depth of the product 290 mm
Construction type Built-in
Operating Mode Convertible
Max. air recirculation (m³/h) 300 m³/h
Sound pressure max. normal 41 dB (A)
Type of control setting and signalling devices LED, Low-lift pushbuttons
Energy efficiency class A
Total annual energy consumption 35.3 kWh/annum
Construction type
Diameter of air outlet (mm) 120 / 150 mm
Colour Silver metallic
Grease filter material Washable aluminium
Grease filter type Kassette
Installation typology Built-in
Material of the body zinc plated
Number of motors 2
Operating Mode Convertible
Typology Pull-out
Connection
Connection rating (W) 146 W
Length electrical supply cord (cm) 175 cm
Frequency (Hz) 50 Hz
Total power of the lamps (W) 6 W
Total power of the motors (W) 140 W
Voltage (V) 220-240 V

No documents available

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

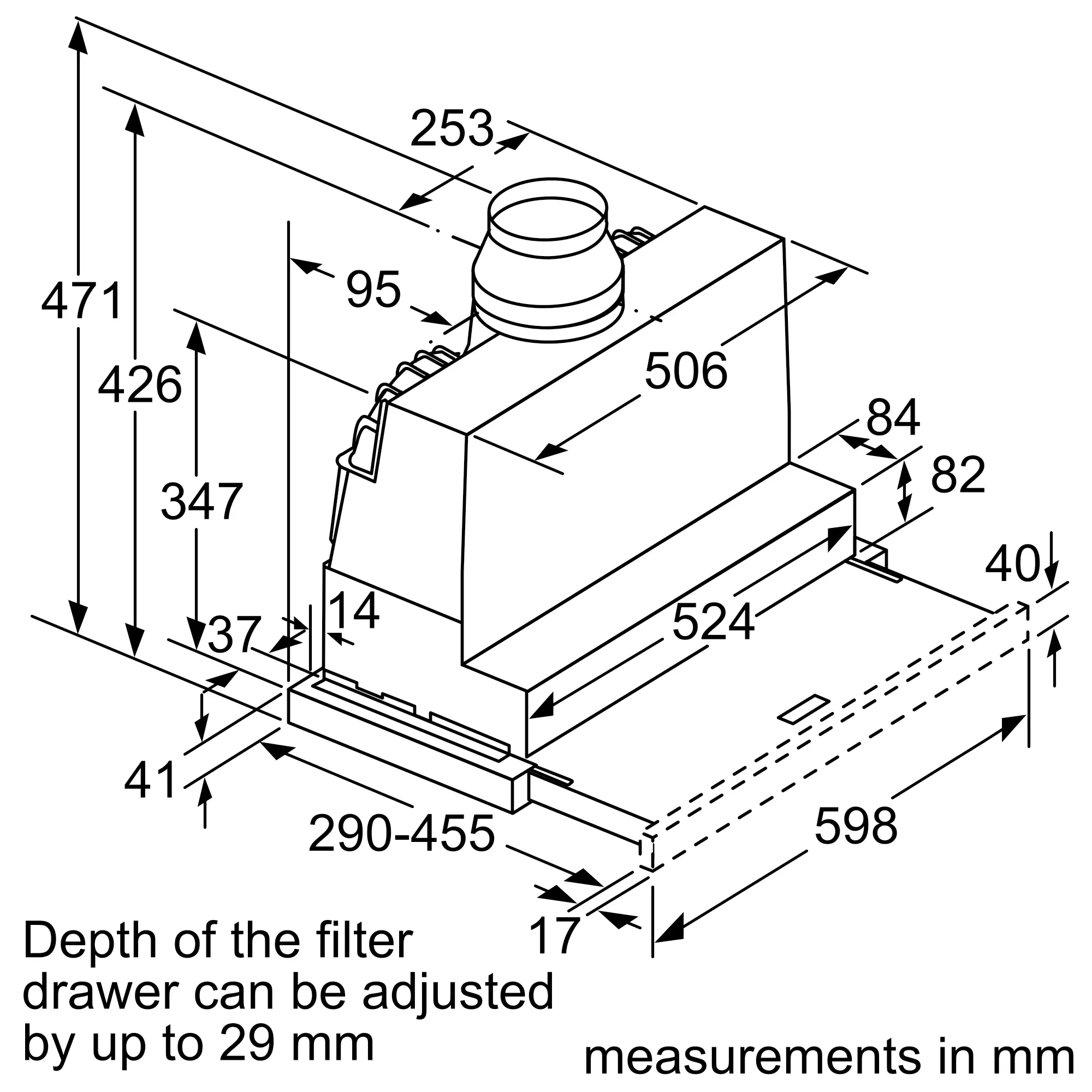

Line Drawings

Made in Germany

Made in Germany

‘Made in Germany’ stands for high-class workmanship. We never compromise, so we wouldn’t expect you to either. That’s why all of our appliances have innovative features designed to make your life at home easier.
