Thanks to the intuitive control panel, you can select the cooking zones and set the specific power level you want directly and quickly without pressing press +/- repeatedly.
80cm CombiInduction cooktop with integrated ventilation
The induction cooktop with integrated ventilation module: combines induction with ventilation technology for perfect results.
DirectSelect: easy to understand and even easier to operate.
Fry like a pro with the FryingSensor Plus.
With the FryingSensor Plus, you can brown your fried foods to perfection on the circular cooking zones. The sensor regulates the temperature, based on 4 frying levels or 9 programmes, and automatically controls the frying process. Every steak comes out perfect.
- 4 induction cooking zones
- PowerBoost function - reduce the time to heat up large quantities of water
- Frameless with bevelled front & side edges
- Direct Select 1.0 Touch Control
- Move Mode - 2 Automatic Power Levels
- PerfectFry sensor with 4 temperature settings
- Timer with automatic switch off for all zones
- ReStart - Quickly reinstates previous settings
- QuickStart - Quick and automatic first pot detection
- 17 power levels for each cooking zone
- Cooking zone front right: Standard zone - 180 mm 1.8 KW
- Cooking zone front left: CombiZone
- 210 mm
- 2.2 KW
Cooking zone rear left: CombiZone
- 210 mm
- 2.2 kW
- 180 mm
- 1.8 KW
Cooking zone rear right: Standard cooking zone
- 145 mm
- 1.4 KW
- 6.9 kW total connected load
- Voltage: 220 - 240 V
- Automatic pan recognition sensor
Automatic safety switch-off
- Digital 2-stage residual heat indicator for each cooking zone
- Energy consumption display
- 9 fan speed levels plus 1 intensive setting
- Automatic 30 minutes run-on function
- High-performance blower, Efficient BLDC-technology
- Cast-iron air inlet grid, heat resistant, dishwasher safe
- Extraction rate according to EN 61591:
- min. Normal use 169 m3/h
- max. Normal use 551 m3/h
- Intensive setting 689 m3/h
- Performance in re-circulated extraction:
- min. normal setting 139 m3/h
- max. normal setting 557 m3/h
- Boost-/Intensive setting 620 m3/h
- Suitable for ducted or re-circulated extraction (Accessory is respectively required)
- For ducted extraction extraction kit (accessory HEZ381401) needed
- For recirculated extraction cleanAir recirculating kit (accessory HEZ381501) needed
- Removable and detachable grease filter and liquid collector unit, dishwasher safe
- integrated stainless steel grease filters, dishwasher safe
- condensate and liquid collector unit; ca. 200ml capacity; dishwasher safe
- Liquid spillover safety tank, ca. 2.000ml capacity, Twist-off lock, dishwasher safe
- Saturation indicator for grease filter
- Saturation indicator for cleanAir odor filter
- Noise level in ducted extraction :
- min. normal setting 42 dB(A) re 1 pW (31 dB(A) re 20 µPa sound pressure)
- max. normal setting 70 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
- Boost-/Intensive setting 75 dB(A) re 1 pW (64 dB(A) re 20 µPa sound pressure)
- Noise level in re-circulated extraction:
- min. normal use: 42 dB(A) re 1 pW (31 dB(A) re 20 µPa sound pressure)
- max. normal use: 73 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
- Intensive: 75 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
- Floor cupboard width: min. 80 cm.
- Worktop depth: min. 60 cm (with shortened drawers), max. drawer's depth can be used starting with a worktop depth of 70 cm.
- Immersion depth: 19.8 cm
- Modules for ducted extraction or re-circulated extraction must be ordered separately as special accessory.
- Appliance weight: 23 kg
- The appliance must be freely accessible from below.
- When installing a ventilation hood with ducted extraction and a chimney-vented fireplace, the power supply line of the appliance needs a suitable safety switch.
- The bearing capacity and stability, in case of thin worktops in particular, must be supported using suitable substructures. The overall appliance weight needs to be taken into account.
- Connection piece for ducted extraction: Flat duct DN 150

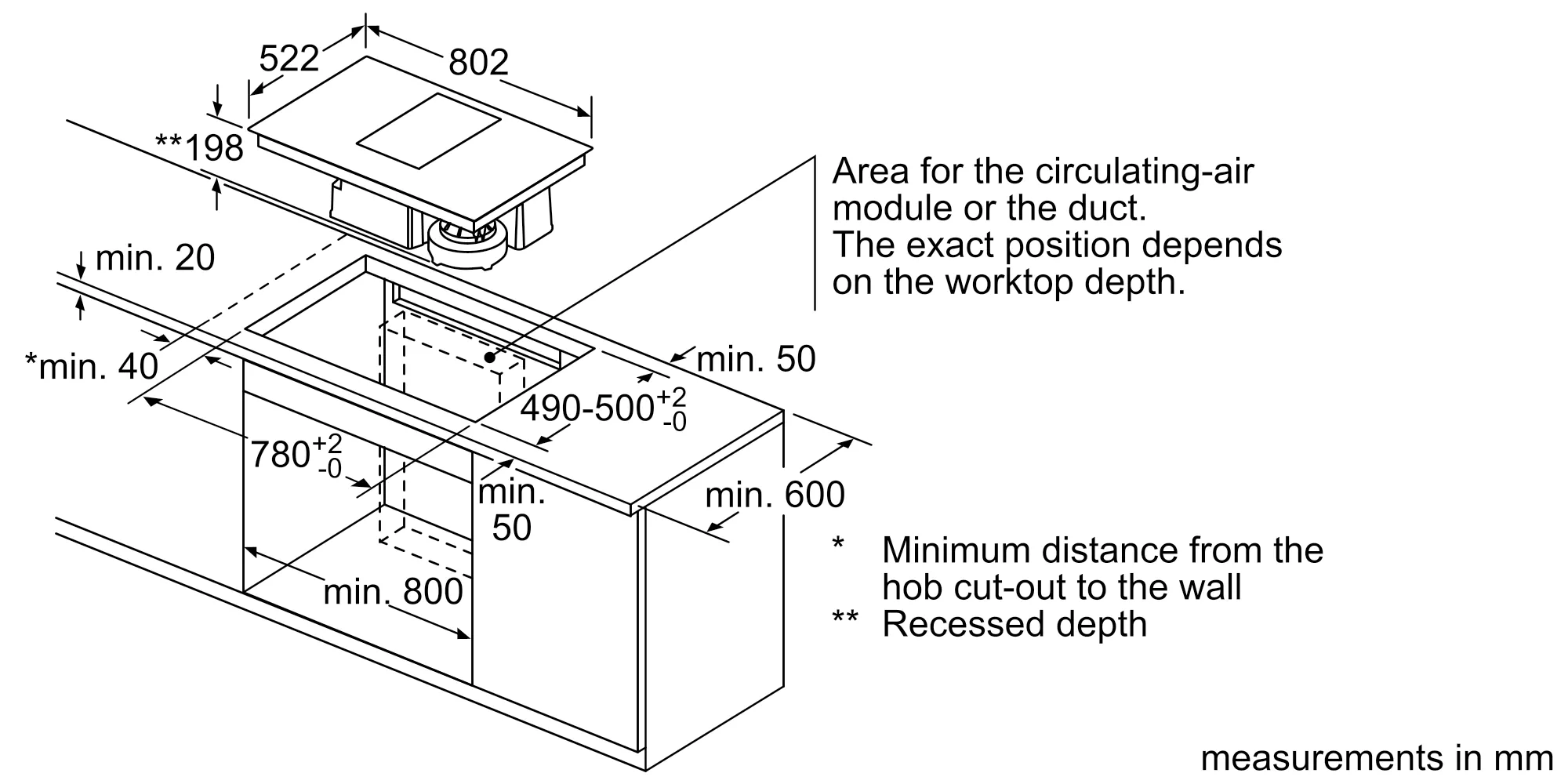

- Appliance measurements (H/W/D): 198 mm x 802 mm x 522 mm
- Installation measurements: 198 x 780-780 x 490-500 mm
- Min. worktop thickness: 20 mm
- Length wire connection: 110 cm
- loose insert in packaging
- HEZ381401, HEZ381501, HEZ381700, HEZ390042, HEZ390090, HEZ390210, HEZ390220, HEZ390230
