Series 2 Integrated Design Hood 90 cm BlackDBB93BC60A
DBB93BC60A
1 / 0
Series 2 Integrated Design Hood 90 cm BlackDBB93BC60A
DBB93BC60A
$999.00
GST included
Loading availability
Delivery timeframes
2–5 days for metro and 5–10 days for regional deliveries
Delivery charges
Free standard delivery on orders over $99.
$10 for spare part & accessory orders under $99.
Flexible payment options
Visa | Mastercard | PayPal
Series 2 Integrated Design Hood 90 cm BlackDBB93BC60A
DBB93BC60A
$999.00
GST included
Loading availability
Delivery timeframes
2–5 days for metro and 5–10 days for regional deliveries
Delivery charges
Free standard delivery on orders over $99.
$10 for spare part & accessory orders under $99.
Flexible payment options
Visa | Mastercard | PayPal
Technical Overview
Installation type
Built-in
Width
90 cm
Cooktop-based rangehood control
No
Noise level
65 dB(A) re 1 pW
PerfectAir sensor
No
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Max. air extraction
384 m³/h
Key Features
Quality You Can Trust
Specifications
Width
90 cm
Colour
Black
Installation type
Built-in
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
90 W
Type of control setting and signalling devices
Button
Number of power settings
3
Max. air extraction
384 m³/h
Sound power at max. speed (2010/30/EC)
65 dB
Max. air recirculation
291 m³/h
Sound power at max. speed (recirculation)
66 dB

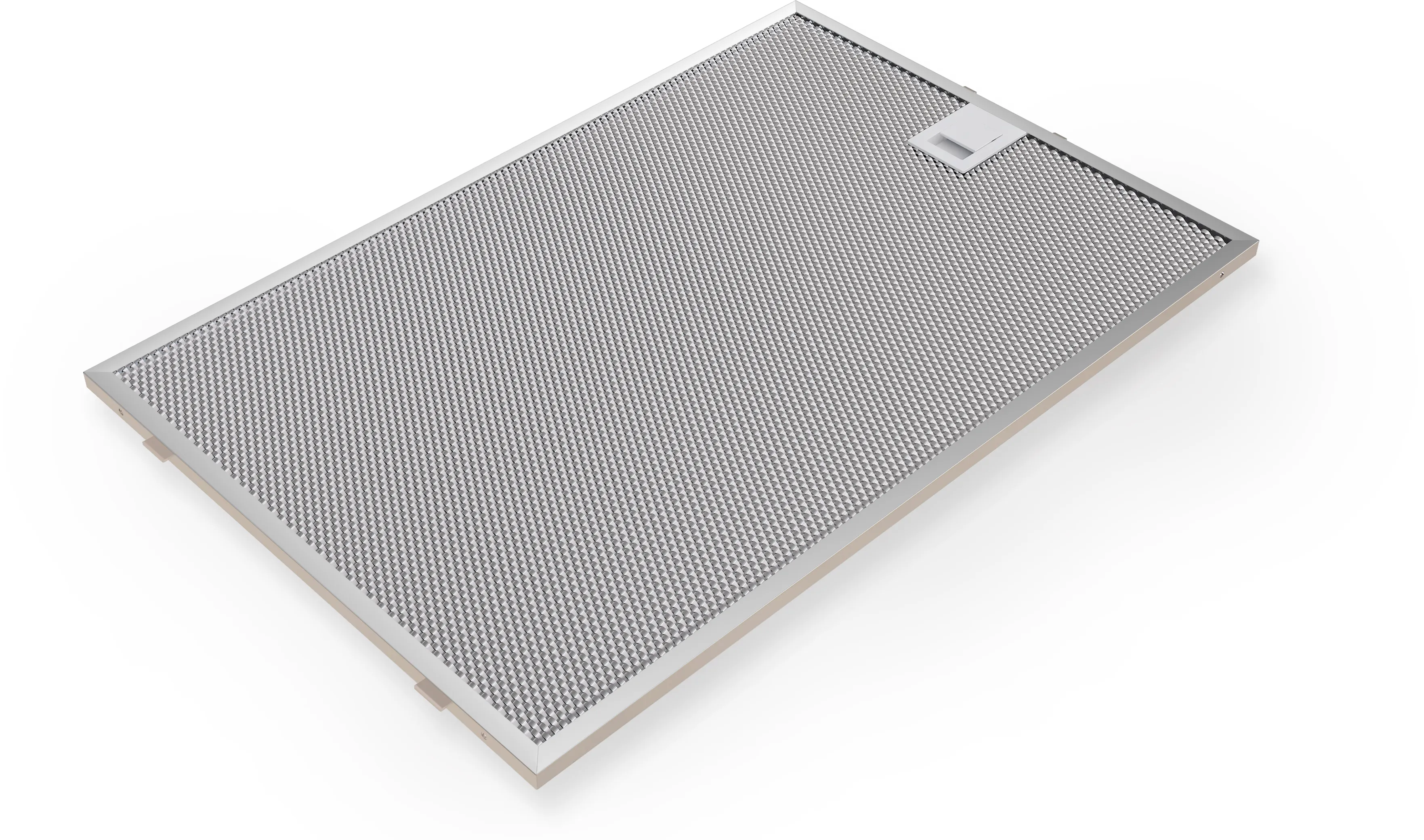

Grease filter material
Washable stainless steel
Energy efficiency rating
N/A
Total annual energy consumption
56.1 kWh/year
Included user manuals
[EN]
Voltage
220-240 V
Height of the appliance
60 mm
Width of the appliance
898 mm
Depth of the product
298 mm
Dimensions of the packed product (HxWxD)
500x580x1020 mm
Height of the chimney
GENERAL.N_A mm
Minimum distance above an electric cooktop (EU)
600 mm
Minimum distance above a gas cooktop
650 mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
8.3 kg
Handle bar
Not applicable
Appliance height exhaust air max
340 mm
Appliance height exhaust air min
340 mm
Appliance height recirculating max
340 mm
Appliance height recirculating min
340 mm
Maximum width for installation
860 mm
Minimum width for installation
860 mm
Depth for installation
300 mm
1 / 0
PerfectAir sensor
No
SilentPowerDrive motor - efficient and extra silent
No
Extremely silent appliances
No
Clean filter reminder
No
Boost mode
No
Delay Shut off modes
No
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
GENERAL.N_A W
Total luminance
290 lux
Color temperature
Neutral (3.500 K)
Illumination type softlight
No
Light colour customisable by Home Connect
No
Ambient light
No
Wi-Fi Enabled (Home Connect)
No
Cooktop-based rangehood control
No
Smart Hood Automatic
No
