Technical Overview
Product group for which the accessory is available
Cooking and baking
Specifications

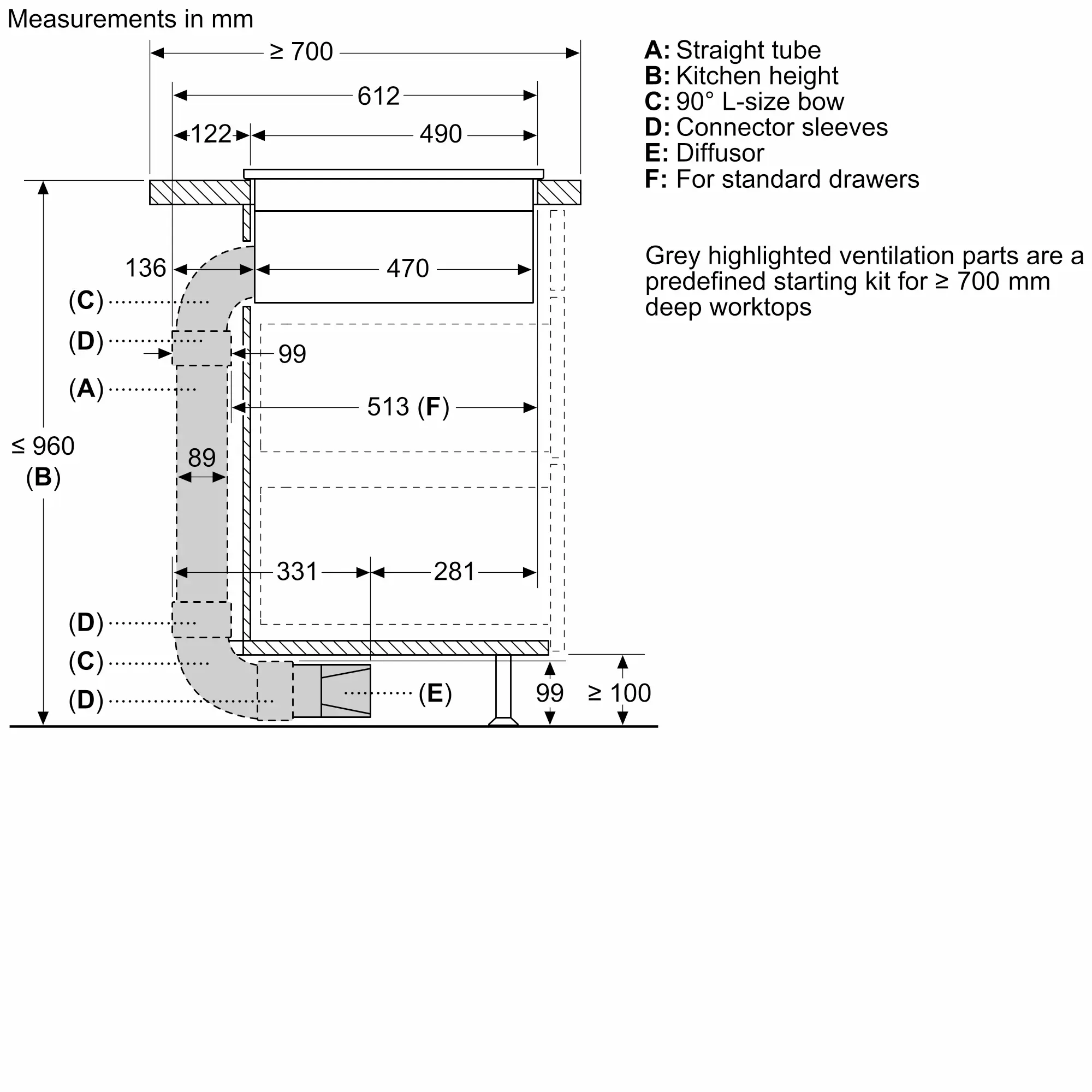

Accessory kit for partly ducted recirculation configurations of your cooktop with integrated ventilation module in kitchens with worktop depths of 70 cm or larger.
Kit consisting of:
2x Vertical 90° “L” bow flat duct element (male)
3x Connector sleeve (female) to combine male flat duct elements
Straight tube element (male, 500 mm)
Diffusor element that can be directly connected to the flat ductelements and that spreads the outflowing air in the plinth area forpartly ducted recirculation configurations.
The elements enable installations in worktop heights up to 960 mm.
The kit complies with the Needle Flame Test (according to IEC 60695-11-5) and the B1 building material class (according to DIN 4102-1).
