Exhaust kitHEZ9VDKE1 • 17006701
HEZ9VDKE1 • 17006701
1 / 3
Exhaust kitHEZ9VDKE1 • 17006701
HEZ9VDKE1 • 17006701
$219.00
Recommended retail price
Where to buy
Show all online dealersBosch has a commercial relationship with this retailer and may receive a commission for products purchased through their website. You accept the privacy policy when you click "Visit Retailer Shop" or the retailer's logo.
Exhaust kitHEZ9VDKE1 • 17006701
HEZ9VDKE1 • 17006701
$219.00
Recommended retail price
Where to buy
Show all online dealersBosch has a commercial relationship with this retailer and may receive a commission for products purchased through their website. You accept the privacy policy when you click "Visit Retailer Shop" or the retailer's logo.
Check appliance compatibility
How to find your E-Number
The model number (E-number) is located on the type plate of your device.
Technical Overview
Product group for which the accessory is available
Cooking and baking
Special Features
Accessory starter kit for ducted extraction configurations of your cooktop with integrated ventilation module in kitchens with worktop depths of 60 cm or larger.

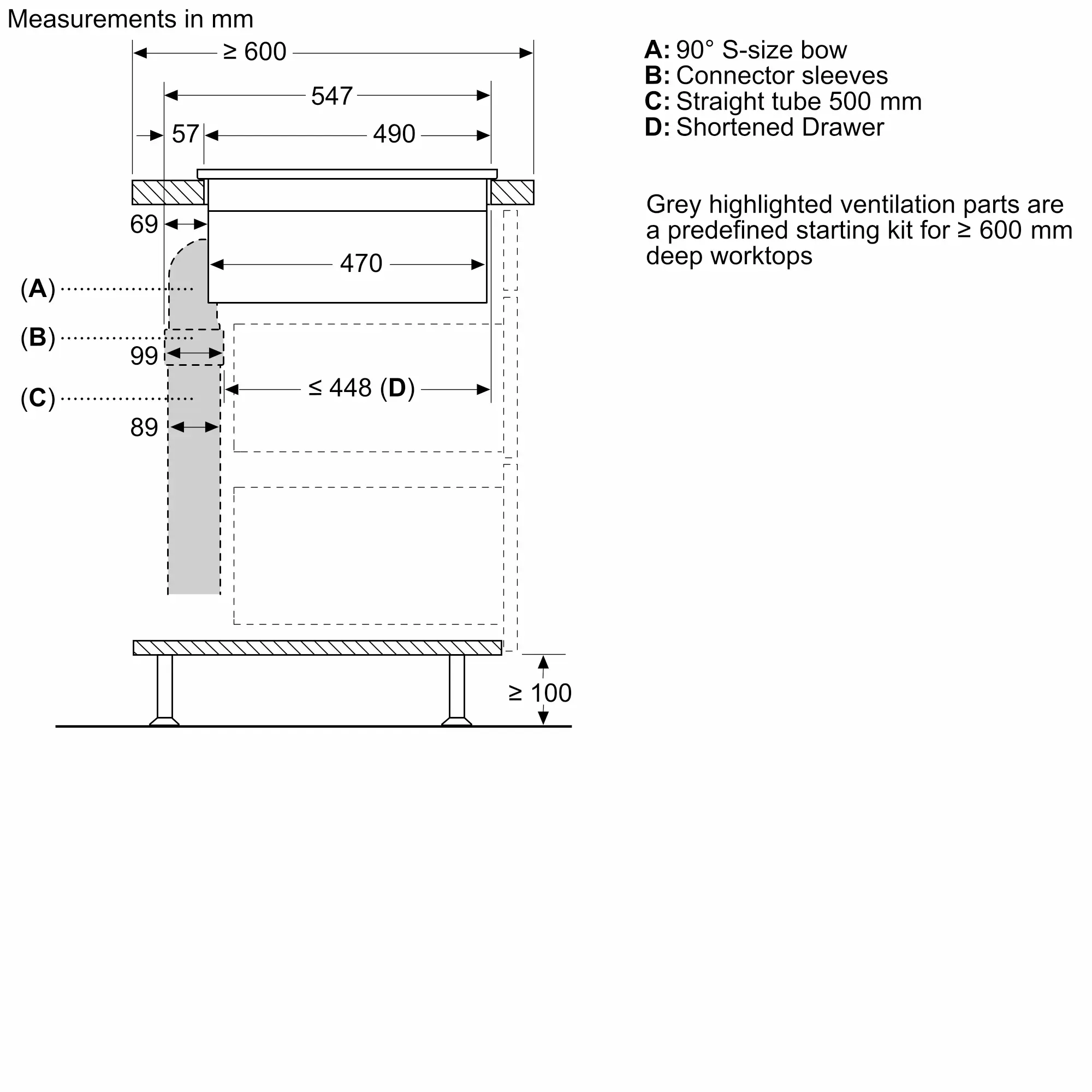

Kit consisting of:
4 high-performance, low-noise acoustic filters for significantly lowernoise and strongly improved psycho-acoustics.
Vertical 90° “S” bow flat duct element (male)
Connector sleeve (female) to combine male flat duct elements
Specifications
Accessory starter kit for ducted extraction configurations of your cooktop with integrated ventilation module in kitchens with worktop depths of 60 cm or larger.
Kit consisting of:
4 high-performance, low-noise acoustic filters for significantly lowernoise and strongly improved psycho-acoustics.
Vertical 90° “S” bow flat duct element (male)
Connector sleeve (female) to combine male flat duct elements
Straight tube element (male, 500 mm)
Further ducting elements must be ordered additionally, according to the customized planning for your specific installation situation.
The kit complies with the Needle Flame Test (according to IEC 60695-11-5) and the B1 building material class (according to DIN 4102-1).
