Serie | 2 60 cm Slideout Rangehood

DFM064W50A

$449.00

Recommended retail price


The slideout rangehood practically disappears into your upper cabinet, giving you a sleek kitchen finish.

Reviews

Technical Specifications

Power and Mode of Operation
  • Maximum extraction 400 m3/h
  • 3 power settings
  • Ducted and recirculated-air operation
Design & Innovation
  • Appliance colour: Steel body, metallic finish
  • Stainless steel fascia panel/pelmet included
  • 2 x 20W halogen light
  • Install into a 60cm wide wall cupboard
Convenience
  • Automatic On/Off operation when telescopic canopy is pulled out and pushed back
Cleaning
  • Dishwasher safe metal grease filters
Safety and Quality
  • Noise min./max. Normal Level: 59/68 dB
    Noise max. Intensive setting: NO_FEATURE dB
Dimensions (HxWxD)
  • Appliance dimensions (HxWxD): 203 x 598 x 290 mm
  • Built-in dimensions (HxWxD): 162 x 526 x 290 mm
Technical Information
  • Noise level according to EN 60704-3 und EN 60704-2-13 at max. normal use exhaust air: 68 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
  • Power rating: 145 W
  • Average Energy Consumption: 66.3 kWh/year
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
More Info
General
Width 60 cm
Depth of the product 290 mm
Construction type Built-in
Operating Mode Convertible
Max. air recirculation (m³/h) 190
Sound pressure max. normal 54
Type of control setting and signalling devices Rocker switches
Energy efficiency class C
Total annual energy consumption 66.3
Connectivity
Home Connect
Construction type
Diameter of air outlet (mm) 150 / 120 mm
Colour Silver metallic
Grease filter material Washable aluminium
Grease filter type Kassette
Installation typology Built-in
Material of the body zinc plated
Number of motors 1
Operating Mode Convertible
Typology Pull-out
Connection
Connection rating (W) 145 W
Length electrical supply cord (cm) 175 cm
Frequency (Hz) 50 Hz
Total power of the lamps (W) 40 W
Total power of the motors (W) 105 W
Voltage (V) 220-240 V

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

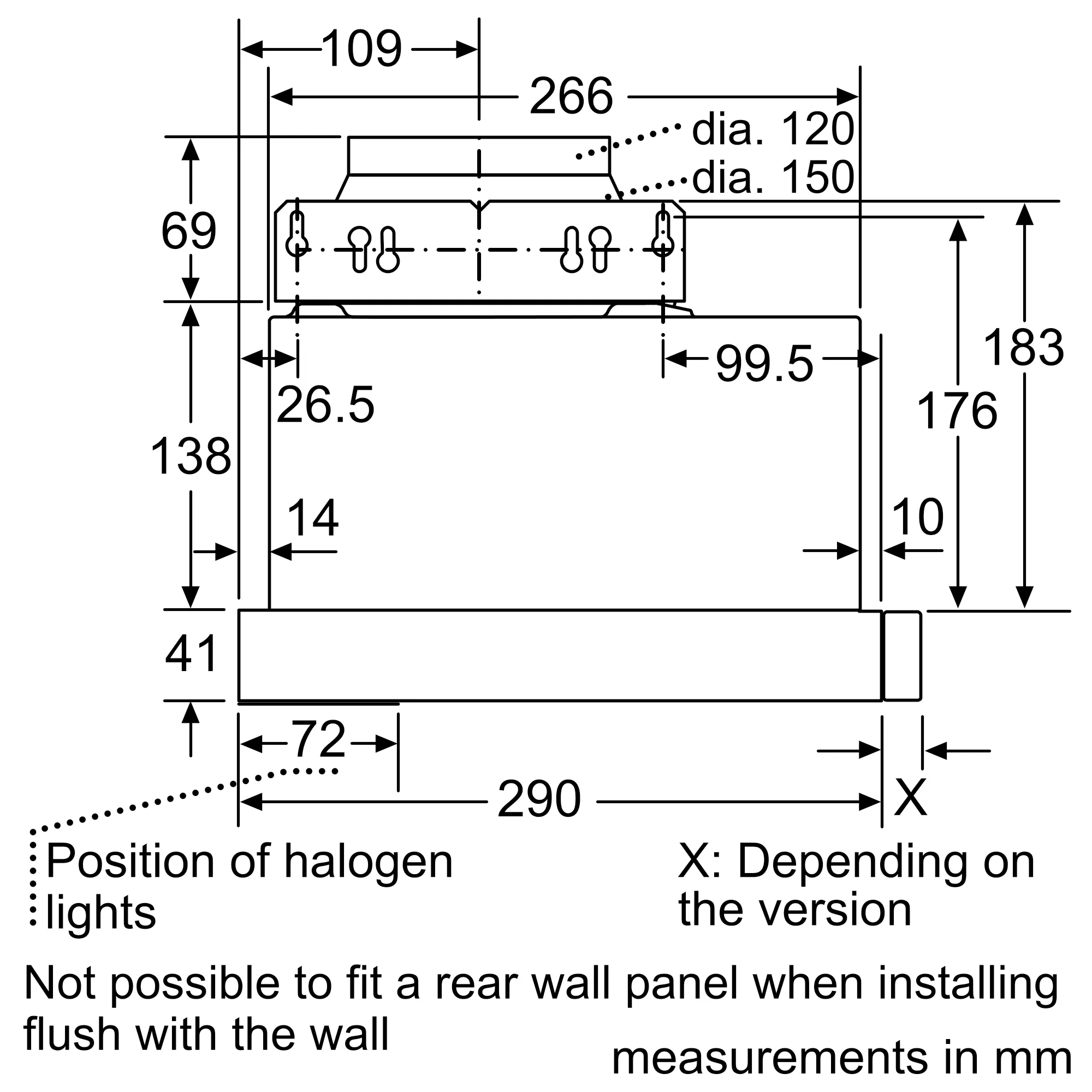

Line Drawings

Made in Germany

Made in Germany

‘Made in Germany’ stands for high-class workmanship. We never compromise, so we wouldn’t expect you to either. That’s why all of our appliances have innovative features designed to make your life at home easier.
