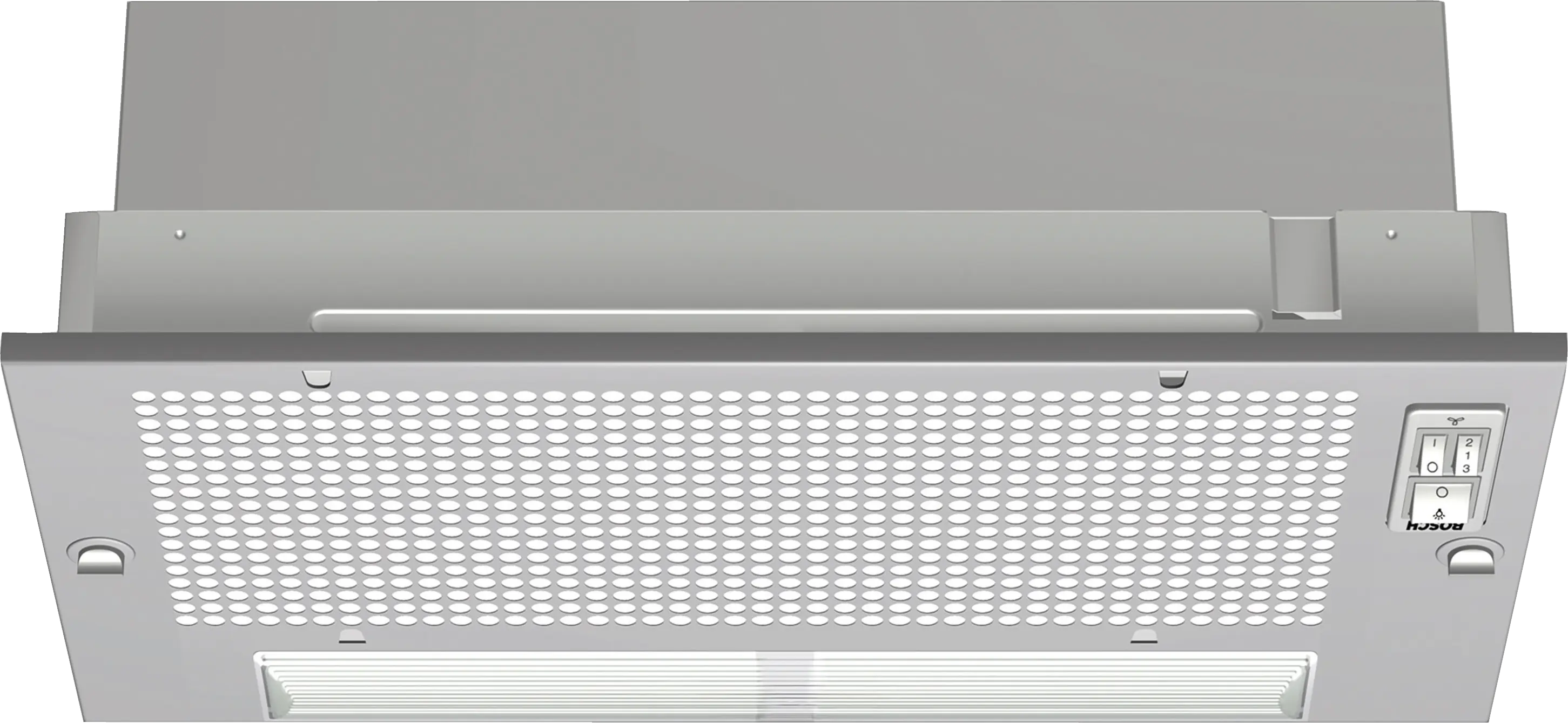

Serie | 2 53 cm Integrated Rangehood



Recommended retail price

The integrated rangehood: offers a sleek and seamless design in the kitchen with fully integrated installation.


The optimum air volume for kitchens of all sizes.

No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be circulated 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the rangehood must be appropriate to the room volume.


Technical Specifications

Power and Mode of Operation
  • Maximum extraction 250 m3/h
  • 2 speeds plus intensive setting
  • Ducted and recirculated-air operation
Design & Innovation
  • Appliance colour: Steel body, metallic finish
  • rocker switch controls for power and light
  • 2 x 30W halogen light
  • Dishwasher safe metal grease filters
Safety and Quality
  • 2 year warranty
Dimensions (HxWxD)
  • Appliance dimensions (HxWxD): 235 x 530 x 280 mm
  • Built-in dimensions (HxWxD): 235 x 500 x 260 mm
  • Power rating: 230 W
More Info
Construction type
Diameter of air outlet (mm) 120 mm
Colour Silver metallic
Grease filter material Washable aluminium
Grease filter type Multilayer
Installation typology Built-in
Material of the body Lacquered
Number of motors 1
Operating Mode Convertible
Typology Traditional
Connection rating (W) 230
Length electrical supply cord (cm) 130
Frequency (Hz) 50 Hz
Total power of the lamps (W) 60 W
Total power of the motors (W) 170
Voltage (V) 220-240 V

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

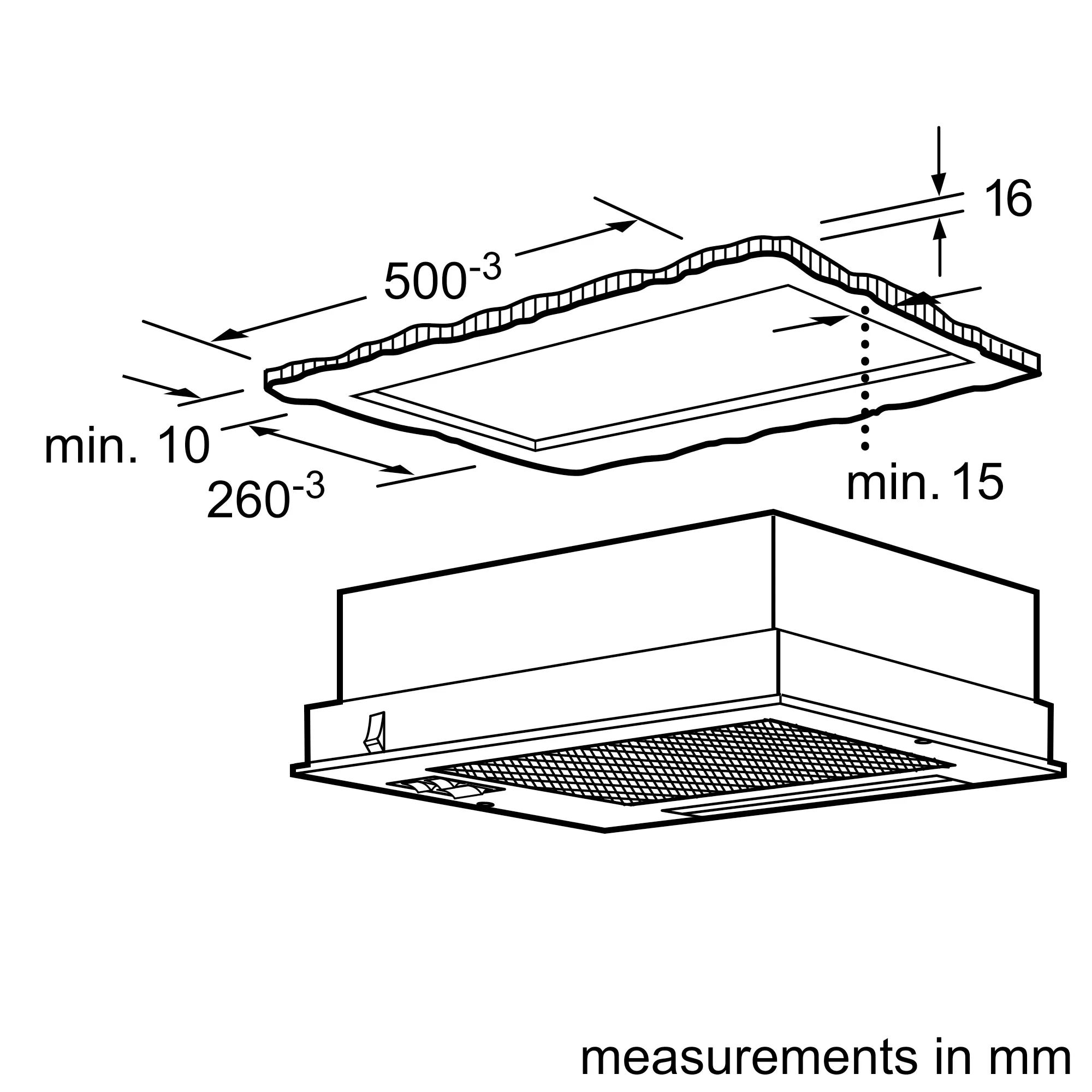

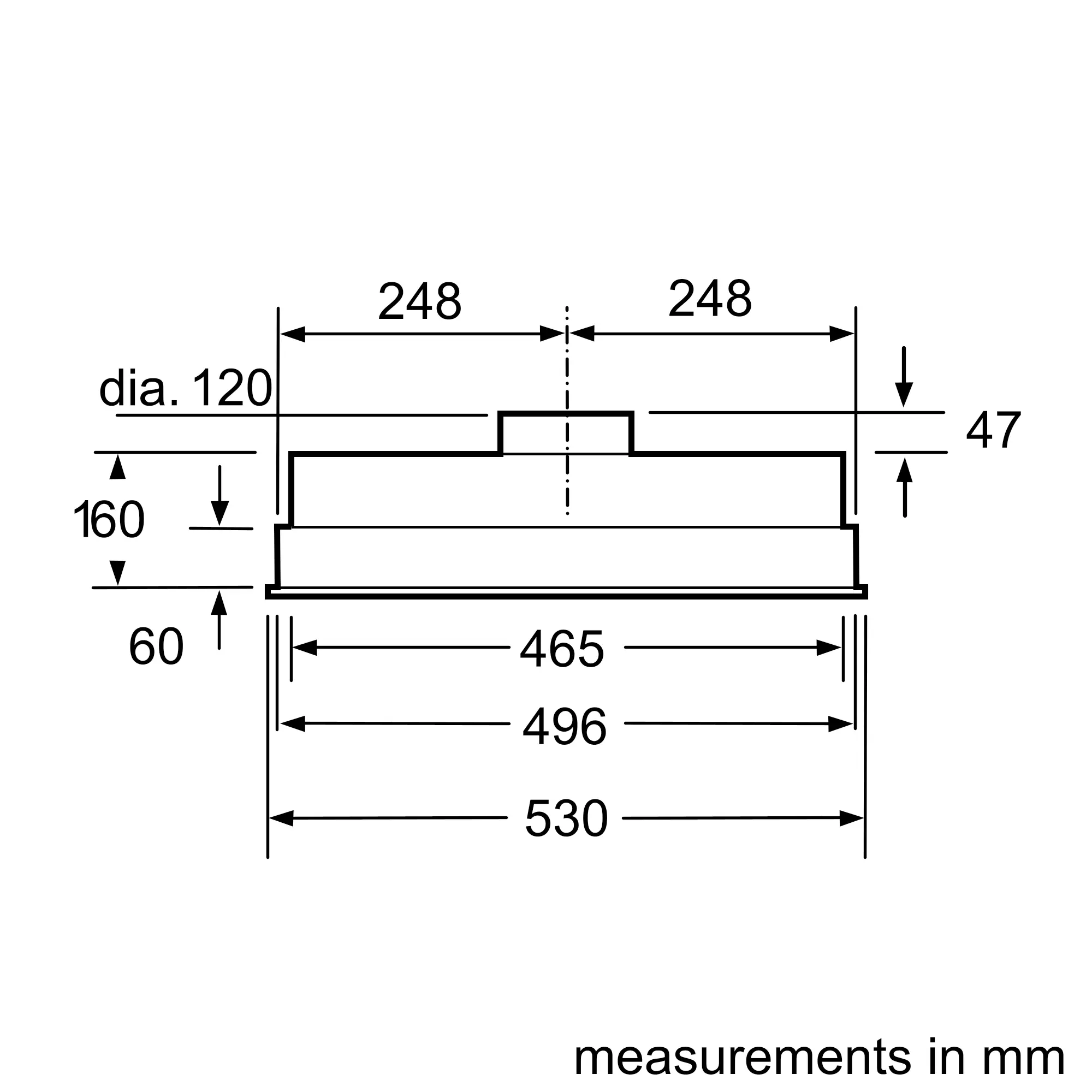

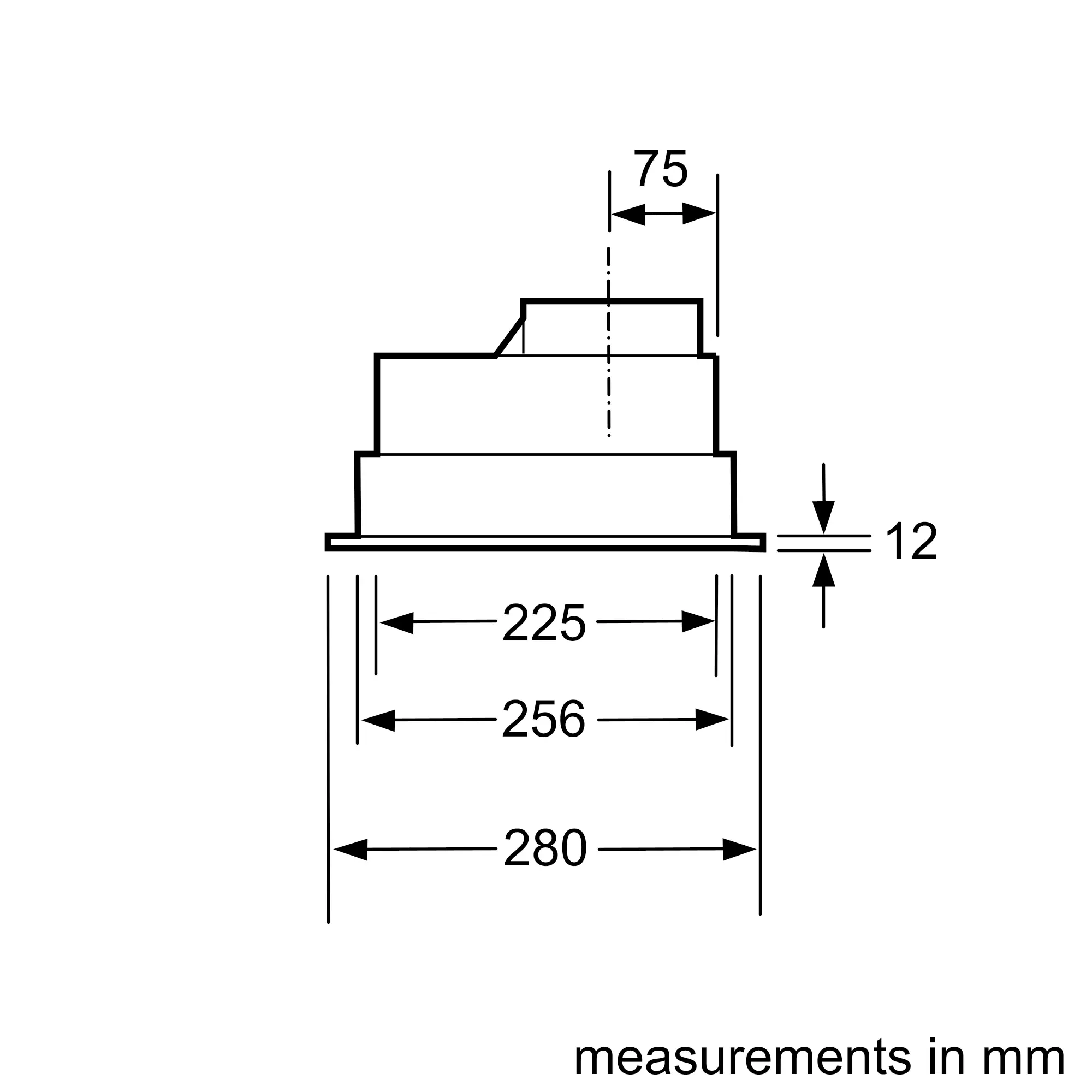

Line Drawings
