Serie | 6 90 cm Gas Cooktop, Tempered Glass, Black

PPS9A6B90A

$1,999.00

Recommended retail price


The tempered-glass gas cooktop with FlameSelect: achieve perfect cooking results thanks to nine precisely defined power levels.

Reviews

Technical Specifications

Design
  • Black Tempered Glass
  • frameless
  • Single pan supports, cast iron
Comfort & Convenience
  • FlameSelect (9 steps)
  • sword knobs
  • One-hand electronic ignition via controls
Size & Power
  • 5 Gas burners
  • Wok burner
  • 1 High-speed, 2 Standard, 1 Economy, 1 Wok burner
  • Left: Wok burner up to 15 Mj/h (depending on gas type)
  • Center rear: Standard burner up to 6.85 Mj/h (depending on gas type)
  • Center front: Economy burner up to 4 Mj/h (depending on gas type)
  • Right rear: High-speed burner 11 Mj/h
  • Right front: Standard burner 6.85 Mj/h
Safety and Environment
  • Flame failure device fitted to each individual burner
  • Preset to natural gas (20mbar)
  • Suitable for natural gas (factory set-up) or LPG connection (via included conversion kit)
Dimensions (WxD)
  • Appliance dimensions: (W x D) 915 mm x 520 mm
  • Installation dimensions: (H x W x D) 45 mm x 850 mm x 490 mm
  • 150 cm with plug
Supplied Accessories
  • Liquid gas nozzles (28-30/37mbar) included
More Info
General
Energy input Gas
Type of control setting and signalling devices sword knobs
Features FlameSelect, Wok burner
Home Connect
Construction type
Color of frame Black
Color of surface Black
Construction type Built-in
Number of electric plates 0
Number of electric cooking zones 0
Type of frame Flush w surrounding surfaces
Number of gas burners 5
Number of halogen plates 0
Installation typology Built-in
Total number of positions that can be used at the same time 5
Number of radiant plates 0
Number of electric warming zones 0
Size and weight
Dimensions of the product (mm) 45 x 915 x 520 mm
Net weight (kg) 19.0 kg
Cooking zone 1
Location of 1st heating element front left
Cooking zone 2
Location of 2nd heating element center left
Type of 2nd heating element Gas
Cooking zone 3
Location of 3rd heating element back left
Cooking zone 4
Location of 4th heating element middle back
Type of 4th heating element Gas
Cooking zone 5
Location of 5th heating element back right
Type of 5th heating element Gas
Cooking zone 6
Location of 6th heating element center right
Cooking zone 7
Location of 7th heating element front right
Type of 7th heating element Gas
Cooking zone 8
Location of 8th heating element front middle / central
Type of 8th heating element Gas
Cooking zone 9
Location of 9th heating element front centre/cent
Safety
Type of safety device for gas Electromagnetic for each burner
Power on indicator
Residual heat indicator without
Main on/off switch
Connection
Length electrical supply cord (cm) 150 cm
Electrical connection rating (W) 1 W
Energy input Gas
Frequency (Hz) 50 Hz
Gas connection rear, right
Gas connection rating (W) 11,500 W
Accessories
Included accessories 1 x cross support for espresso, 1 x WOK attachment ring

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

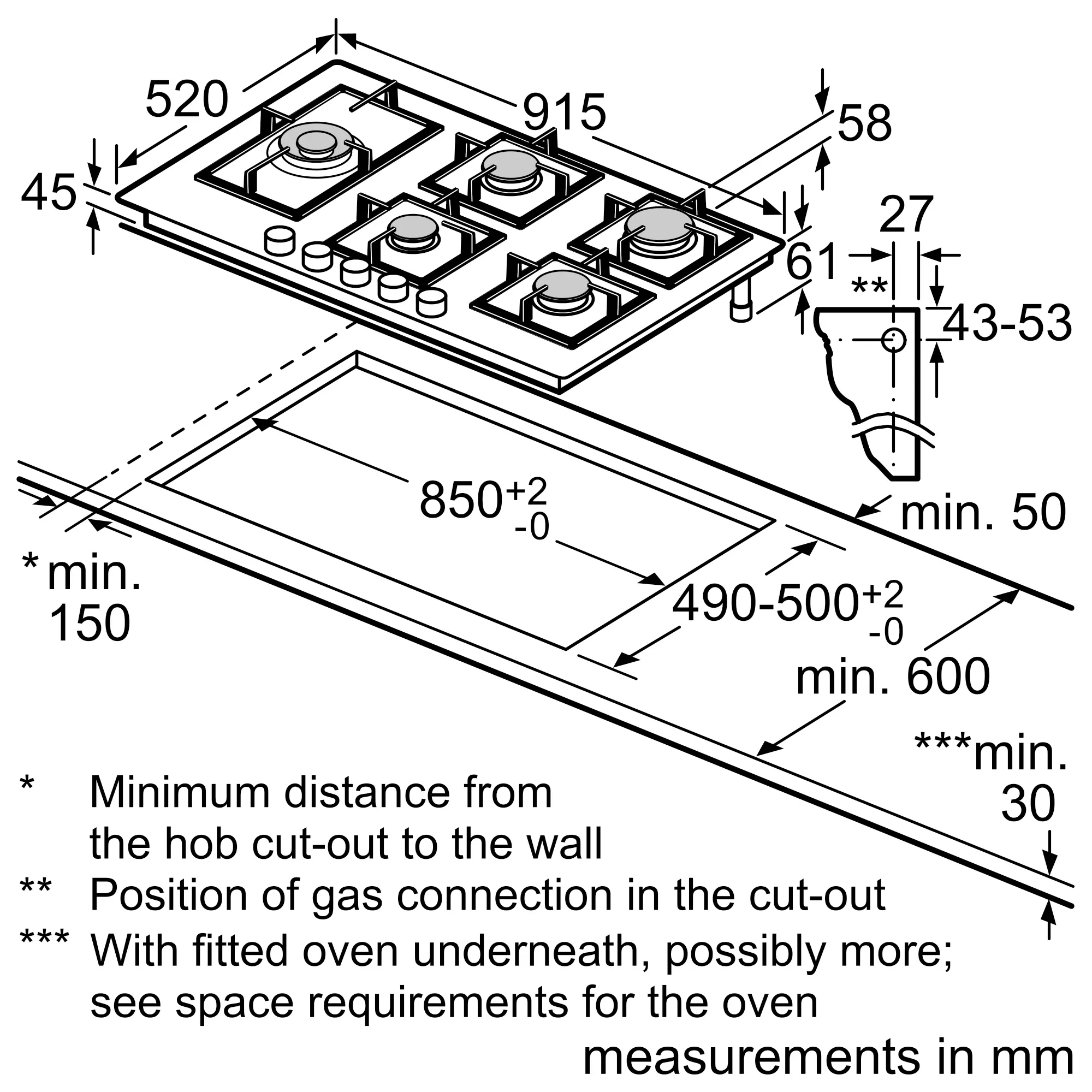

Line Drawings
